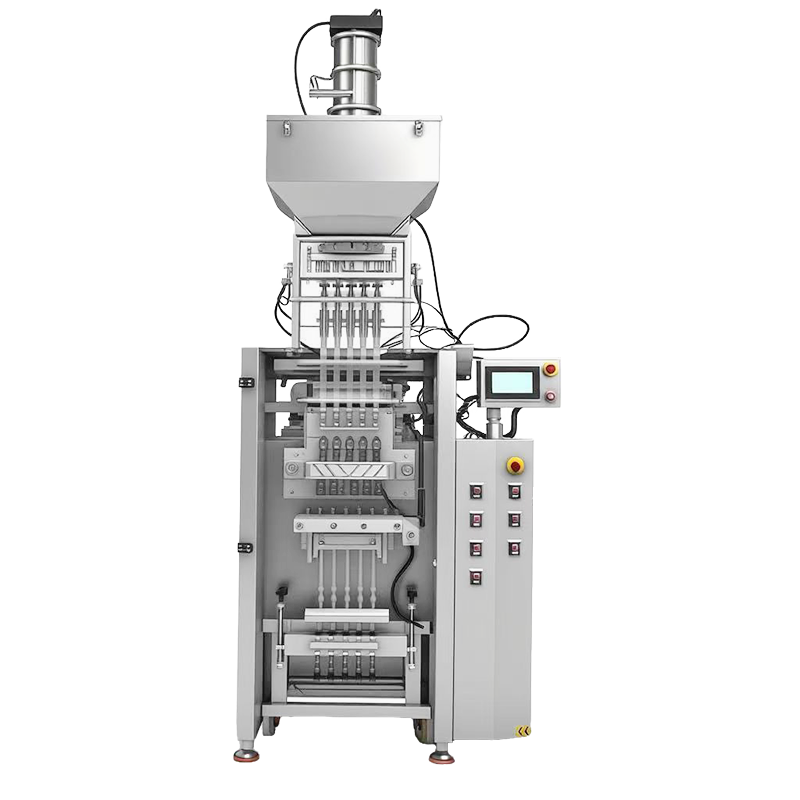

Automatic Multi-Lanes Granule Packing Machine for High-Speed Sachet Packaging
The RUIYI Automatic Multi-Lanes Granule Packing Machine is designed for high-speed sachet packaging of suitable granular products, including sugar, coffee granules and pharmaceutical granules. The four-lane system combines material feeding, measuring, film forming, filling, sealing, cutting and product discharge in one automated process. With PLC control and servo-driven film pulling, the machine offers a published production capacity of 100–140 bags per minute and a volumetric measuring range of 1–20 mL.
Technical Specifications
Technical parameters published on the original RUIYI Machinery product page.
| Machine Name | Automatic Multi-Lanes Granule Packing Machine for High-Speed Sachet Packaging |
|---|---|
| Packaging Lanes | 4 |
| Packaging Speed | 100–140 bags/minute |
| Measuring Range | 1–20 mL |
| Bag Length | 50–160 mm |
| Bag Width | 17–31 mm |
| Maximum Roll Film Width | 280 mm |
| Control System | PLC control with dual-language touchscreen |
| Film Pulling | Servo motor control |
| Sealing Temperature Control | Independent control, stated precision up to ±1°C |
| Compressed Air Pressure | 0.8 MPa |
| Air Consumption | 0.8 m³/min |
| Power Supply | AC 220V / 50Hz, 1N + PE |
| Power | 3.5 kW |
| Machine Dimensions (L × W × H) | 1535 × 1418 × 2705 mm |
| Machine Weight | 500 kg |
| Main Machine Material | 304 stainless steel |
The measuring range is expressed in milliliters, not grams. Actual filling weight depends on product bulk density and flowability. Packaging speed and sealing performance vary with product properties, film specifications, bag dimensions and machine configuration. Confirm the compressed-air and electrical requirements before installation.
Machine Features
Integrated multi-lane measuring and packaging functions for efficient granular-product sachet production.
Four-Lane Simultaneous Packaging
Four packaging lanes operate in parallel to form, fill, seal and cut multiple sachets during the same production cycle, increasing output compared with a single-lane process.
PLC Touchscreen Operation
The PLC control system and dual-language touchscreen provide convenient parameter adjustment. The original product description also states that up to ten parameter sets can be stored.
Servo-Driven Film Pulling
Servo motor film pulling supports accurate film positioning and repeatable bag length during continuous multi-lane sachet production.
Servo-Controlled Measuring
Servo control of material measurement supports coordinated dosing across the packaging lanes and helps maintain consistent filling performance.
Independent Temperature Control
Independent horizontal and vertical sealing temperature controls allow adjustment for compatible composite and PE films, with stated control precision up to ±1°C.
Automatic Material Feeding
Automatic material-level detection and vacuum-assisted material feeding help maintain a continuous supply of suitable granular products during operation.
Applications
Suitable for compatible granular materials requiring small-volume, high-speed sachet packaging.
Sugar and Sweetener Granules
Multi-lane sachet packaging for suitable sugar granules, sweeteners and other free-flowing food ingredients used in portion-controlled packs.
Instant Coffee Granules
Small sachet packaging for compatible instant coffee granules and granular beverage ingredients used in single-serving applications.
Pharmaceutical Granules
Packaging for suitable pharmaceutical granule formulations, subject to product testing and applicable hygiene and production validation requirements.
Nutritional and Food Granules
High-speed sachet packaging for compatible nutritional granules, drink-mix granules and other small-dose food products.
Why Choose RUIYI Multi-Lane Granule Packaging Equipment?
Higher Packaging Efficiency
The four-lane configuration supports a published total output of 100–140 bags per minute, making it suitable for higher-volume granule sachet production.
Integrated Automatic Workflow
Material feeding, measuring, bag forming, filling, sealing, cutting and finished-product discharge operate together in a coordinated packaging process.
Convenient Production Adjustment
PLC control, servo-driven film movement and stored parameter settings support repeatable operation and practical product changeovers.
Factory Application Support
RUIYI Machinery can review product samples, filling requirements, sachet dimensions, packaging film and production targets to recommend a suitable configuration.
Frequently Asked Questions
What is an automatic multi-lanes granule packing machine?
It is a packaging machine that forms, fills, seals and cuts multiple granule sachets simultaneously. This RUIYI machine uses four parallel lanes for small-volume granule packaging and combines automatic feeding, measuring and bag-making functions.
What is the production speed of this four-lane granule packing machine?
The original RUIYI technical specifications list a total output of 100–140 bags per minute. Actual production speed depends on the granular product, filling volume, sachet dimensions and packaging conditions.
What sachet sizes can the machine produce?
The published bag length is 50–160 mm and the bag width is 17–31 mm. The maximum roll film width is 280 mm. Final bag sizes should be confirmed with the intended film and product requirements.
What is the measuring range of the machine?
The published measuring range is 1–20 mL. This is a volumetric specification, so the corresponding filling weight depends on the bulk density and flow characteristics of the granules.
What materials and packaging films can this machine handle?
The original product description lists granular products such as sugar, coffee and pharmaceutical granules. Its temperature control system is described as suitable for various compatible composite and PE films. Product and film samples should be tested to confirm compatibility.
What information is needed for a quotation?
Please provide the granule type, target filling volume or weight, sachet length and width, packaging film, required output, power supply, compressed-air availability and destination country. Product samples can help RUIYI Machinery evaluate the appropriate configuration.
Request a Multi-Lanes Granule Packing Machine Quote
Tell us your granule type, target filling volume, sachet dimensions, packaging film and required production speed. Our team can help you evaluate a suitable automatic multi-lane granule packaging solution.
