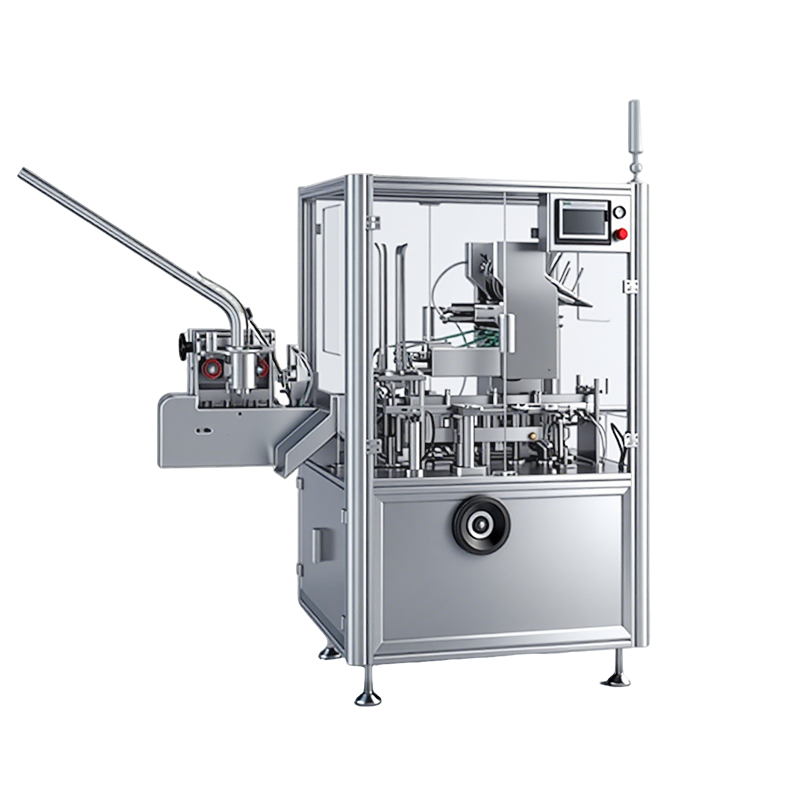

Automatic Vertical Cartoning Machine
The RUIYI Automatic Vertical Cartoning Machine is designed for automated carton packaging of products in different shapes and specifications. It combines mechanical, electrical and pneumatic functions to support automatic product feeding, carton loading and packaging.
- Cartoning speed of 60–80 boxes/min
- Suitable for different product and carton specifications
- Adjustable feeding and carton quantity settings
- Touchscreen operation for convenient adjustment
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Automatic Vertical Cartoning Machine |
| Cartoning Speed | 60–80 boxes/min |
| Carton Paper Weight | 250–350 g/m² (based on carton size) |
| Leaflet Paper Weight | 60–70 g/m² |
| Carton Size Range | (65–150) × (30–85) × (12–45) mm |
| Unfolded Leaflet Size | 130 × 90 mm |
| Leaflet Folding | 1–4 folds |
| Working Air Pressure | ≥ 0.6 MPa |
| Air Consumption | 120–160 L/min |
| Power Supply | 380 V / 50 Hz / 1.5 kW |
| Machine Dimensions | 1200 × 990 × 1700 mm |
| Machine Weight | 1100 kg |
Note: Specifications are based on the RUIYI product catalog. Confirm carton compatibility and configuration before ordering.
Machine Features
RUIYI's automatic vertical cartoning machine supports a continuous packaging process with convenient adjustment for different carton and product requirements.
Automatic Feeding
Supports automatic feeding of products into the cartoning process.
Integrated Operation
Combines mechanical, electrical and pneumatic functions in one machine.
Touchscreen Control
Feeding settings and carton quantities can be adjusted through the touchscreen.
Adjustable Packaging
Designed to accommodate different product specifications within the supported range.
Stable Cartoning Process
Designed for continuous and reliable automatic carton packaging.
Compact Machine Layout
Vertical cartoning configuration with machine dimensions of 1200 × 990 × 1700 mm.
Applications
The automatic vertical cartoning machine can be evaluated for different packaged products, subject to product feeding, carton size and configuration requirements.
Bottle Cartoning
Secondary carton packaging for compatible bottled products.
Tube Packaging
Carton packing of compatible tube-shaped products with suitable feeding arrangements.
Sachet Cartoning
Cartoning applications for pre-packed sachets and small packaged items.
Blister Pack Cartoning
Secondary carton packaging of blister packs with an appropriate feeding setup.
Advantages of RUIYI Vertical Cartoning Machine
Reduced Manual Handling
Automatic feeding and cartoning can reduce manual operations in the packaging process.
Flexible Product Setup
Feeding settings can be adjusted to suit different product specifications and packaging requirements.
Convenient Operation
Touchscreen adjustment helps operators manage feeding and carton quantity settings.
Manufacturer Support
RUIYI Machinery can discuss machine selection and packaging configurations based on customer samples and requirements.
Frequently Asked Questions
What is an automatic vertical cartoning machine?
What is the cartoning speed of this machine?
What carton sizes can this vertical cartoner handle?
Can this machine package bottles, tubes, sachets and blister packs?
What utilities are required for installation?
How do I choose a suitable vertical cartoning machine?
