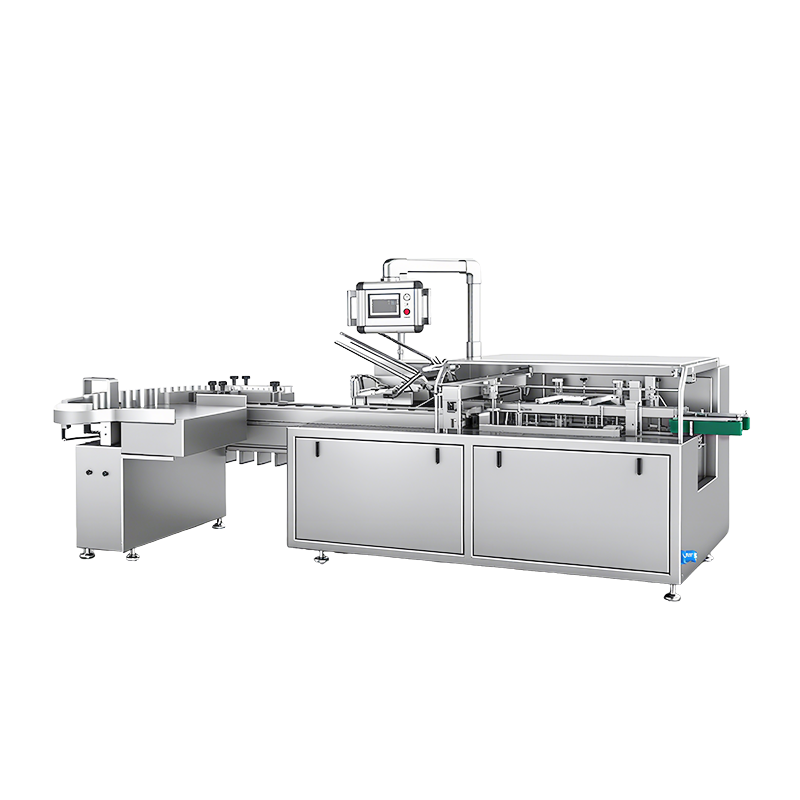

Automatic Horizontal Cartoning Machine with Bottle Unscrambler
The RUIYI Automatic Horizontal Type Cartoning Machine with Bottle Unscrambler is designed for automatic packaging of round and square bottles into cartons. It combines bottle orientation and feeding with carton opening, leaflet insertion, bottle loading, batch number printing and carton sealing. With a published production speed of 30–120 cartons per minute, this integrated cartoning solution supports pharmaceutical, supplement and other suitable bottled product packaging lines.
Technical Specifications
Technical parameters published on the original RUIYI Machinery product page.
| Machine Name | Automatic Horizontal Cartoning Machine with Bottle Unscrambler |
|---|---|
| Cartoning Speed | 30–120 cartons/minute |
| Carton Paper Weight | 250–350 g/m², depending on carton size |
| Carton Dimensions (L × W × H) | 70–200 × 30–150 × 13–100 mm |
| Leaflet Paper Weight | 60–70 g/m² |
| Unfolded Leaflet Dimensions | 80–250 × 90–170 mm |
| Leaflet Folding Range | 1–4 folds |
| Compressed Air Pressure | ≥0.6 MPa |
| Air Consumption | 120–160 L/minute |
| Power Supply | 380V / 50Hz |
| Main Motor Power | 1.5 kW |
| Machine Dimensions (L × W × H) | 4150 × 1450 × 1550 mm |
| Machine Weight | 1800 kg |
Actual production speed depends on bottle dimensions, carton specifications, leaflet requirements and production line conditions. Please confirm compatibility using your product and packaging samples.
Machine Features
Integrated bottle handling and automatic cartoning functions for consistent secondary packaging.
Integrated Bottle Unscrambling
Automatically organizes and feeds compatible round and square bottles into the cartoning process, reducing manual bottle handling.
Automatic Carton Forming
Opens and forms flat cartons before transferring bottles and leaflets into the prepared packaging.
Leaflet Folding and Insertion
Supports automatic leaflet handling, folding and insertion with a published range of 1–4 folds.
Product and Leaflet Detection
Detection and rejection functions help identify cartons missing bottles or required leaflets.
Batch Number Printing
The cartoning process includes batch number printing to support packaged product identification and traceability.
Flexible Carton Sealing
Supports tuck-in carton closure or hot-melt glue sealing, depending on the carton format and selected configuration.
Applications
Designed for secondary cartoning of compatible bottled products in different packaging industries.
Pharmaceutical Bottles
Automatic carton packaging for suitable bottled pharmaceutical products requiring printed cartons and instruction leaflets.
Vitamin and Supplement Bottles
Secondary packaging for bottled vitamins, tablets, capsules and other compatible dietary supplement products.
Round Bottle Packaging
Automated bottle orientation and carton loading for compatible round bottles within the machine's packaging specifications.
Square Bottle Packaging
Horizontal cartoning applications for suitable square bottles and matching folding cartons.
Why Choose RUIYI Horizontal Cartoning Equipment?
Integrated Packaging Functions
Bottle unscrambling and automatic cartoning work together to support a coordinated packaging process.
Reduced Manual Handling
Automated bottle feeding, carton opening, leaflet insertion and sealing reduce repetitive manual operations.
Packaging Quality Control
Product and leaflet detection with automatic rejection helps reduce incomplete cartons.
Factory-Based Equipment Support
RUIYI Machinery can discuss sample testing, factory inspection and suitable cartoning configurations for your production line.
Frequently Asked Questions
What is an automatic horizontal cartoning machine with bottle unscrambler?
It is an integrated packaging system that organizes compatible bottles and automatically loads them into folding cartons. The process can include leaflet insertion, batch number printing and carton sealing.
What is the production speed of this cartoning machine?
The original RUIYI product page specifies a cartoning speed of 30–120 cartons per minute. Actual output depends on the bottle, carton, leaflet and operating configuration.
Can the machine handle both round and square bottles?
Yes. The original product description identifies round and square bottles as suitable product formats. Bottle dimensions and feeding compatibility should be confirmed before equipment selection.
Can instruction leaflets be inserted automatically?
Yes. The machine supports automatic leaflet feeding, folding and insertion. The published leaflet folding range is 1–4 folds.
What carton sizes can this machine handle?
The published carton dimension range is 70–200 mm in length, 30–150 mm in width and 13–100 mm in height. Carton samples should be tested to confirm suitability.
What information is required for a cartoning machine quotation?
Please provide your bottle shape and dimensions, carton size, leaflet requirements, target production speed, preferred sealing method and destination country. RUIYI Machinery can review these details and discuss a suitable cartoning solution.
Request a Horizontal Cartoning Machine Quote
Tell us your bottle dimensions, carton size, leaflet requirements and target production speed. Our team can help you discuss a suitable automatic horizontal cartoning solution.
