Automatic Checkweigher

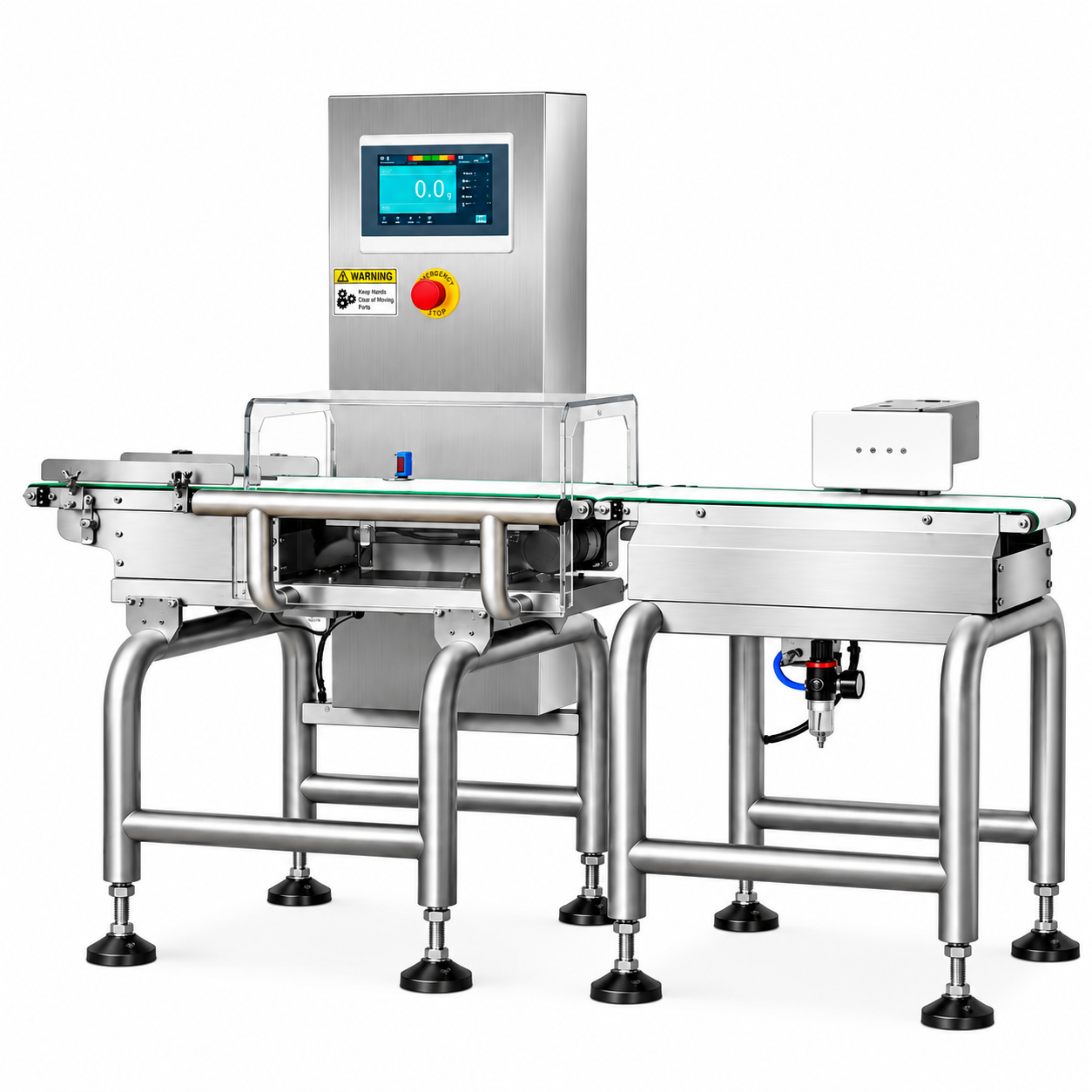

The RUIYI Automatic Checkweigher is designed for automatic weight inspection and sorting of compatible products on production lines. With a specified weighing range of up to 1500 g and a maximum sorting speed of 60–80 pieces per minute, it helps manufacturers identify products outside their configured weight limits. The machine features a 7-inch touchscreen, a pusher rejection mechanism and a SUS304 stainless steel structure for packaging-line applications.
Technical Specifications
Technical parameters supplied for the RUIYI Automatic Checkweigher.
| Machine Name | Automatic Checkweigher |
|---|---|
| Weighing Range | Up to 1500 g |
| Minimum Scale / Indication | ±0.2 g–±0.5 g (depending on product) |
| Sorting Speed | Maximum 60–80 pieces/minute |
| Maximum Product Length | 300 mm |
| Maximum Product Width | 220 mm |
| Product Height Range | 3–200 mm |
| Operating Method | Touch operation |
| Operator Interface | 7-inch touchscreen |
| Reject Method | Pusher plate |
| Belt Height from Floor | 750 ± 50 mm (customizable) |
| Machine Structure | SUS304 stainless steel |
| Power Supply | 220V, 50–60Hz |
| Power Consumption | Approximately 200 W |
| Platform Size | 407 × 220 mm |
| Weight | Approximately 80 kg + 40 kg |
| Optional Functions | Three-color warning light, RS232/RS485 communication, USB interface |
Actual inspection speed and weighing performance vary with product characteristics and operating conditions. The stated minimum scale/indication must not be interpreted as guaranteed weighing accuracy. Product testing is recommended.
Machine Features
Designed for automatic product weight checking and sorting within compatible packaging production processes.
Automatic Weight Inspection
Checks product weight against configured limits during conveyor-based inspection.
7-Inch Touchscreen
Touchscreen operation allows operators to interact with machine settings and inspection functions.
Pusher Reject Mechanism
A pusher plate provides automatic sorting of products identified for rejection.
SUS304 Stainless Steel
The machine structure uses SUS304 stainless steel, suitable for many packaging environments.
Adjustable Conveyor Height
The specified belt height is 750 ± 50 mm and can be customized according to project requirements.
Optional Communication
Optional RS232/RS485 communication and USB interface functions can be discussed during configuration.
Applications
The RUIYI Automatic Checkweigher can be considered for weight inspection of products that fit the specified weight and dimensional limits.
Pharmaceutical Packaging
Weight inspection of compatible packaged pharmaceutical products after filling or packing.
Health Supplement Packaging
Checking packaged supplement products against configured weight limits.
Food Packaging
Weight sorting of suitable food packages within the machine's supported weight and size ranges.
Automated Packaging Lines
Can be considered as a weight inspection stage within compatible production lines, subject to integration testing.
Why Choose RUIYI Checkweighing Equipment?
Weight-Based Quality Control
Helps identify products outside configured weight limits as part of packaging quality control.
Automatic Product Rejection
The specified pusher reject mechanism helps separate products requiring removal from the line.
Flexible Line Installation
Customizable conveyor height allows buyers to discuss compatibility with their existing packaging equipment.
Manufacturer Support
RUIYI Machinery offers factory inspection, machine testing and equipment configuration discussions based on your application.
Frequently Asked Questions
What is an automatic checkweigher used for?
An automatic checkweigher checks product weights during production and helps identify packages outside specified weight limits. The RUIYI Automatic Checkweigher uses a conveyor-based inspection process with a pusher reject mechanism.
What is the weighing range of the RUIYI Automatic Checkweigher?
The supplied equipment specification lists a weighing range of up to 1500 g. Product dimensions and operating conditions must also be considered when selecting the machine.
How fast can the automatic checkweigher inspect products?
The specified maximum sorting speed is 60–80 pieces per minute. Actual speed depends on product characteristics, spacing, weight and required inspection performance.
What is the weighing accuracy of this checkweigher?
The supplied specification states a minimum scale or indication of ±0.2 g–±0.5 g, depending on the product. This value should not be treated as a guaranteed dynamic weighing accuracy. Actual performance must be confirmed through testing with the customer's products.
Can the RUIYI checkweigher reject products outside the target weight?
Yes. The specified rejection method is a pusher plate, used to separate products identified for rejection according to the configured inspection settings.
What information is needed to select an automatic checkweigher?
Please provide the product type, target weight, acceptable weight tolerance, package dimensions, required line speed and conveyor height. RUIYI Machinery can review these details and discuss suitable machine configuration and product testing.
Request an Automatic Checkweigher Quote
Tell us your product weight, package dimensions, required inspection speed and target weight tolerance. Our team can help you discuss a suitable checkweighing solution.
