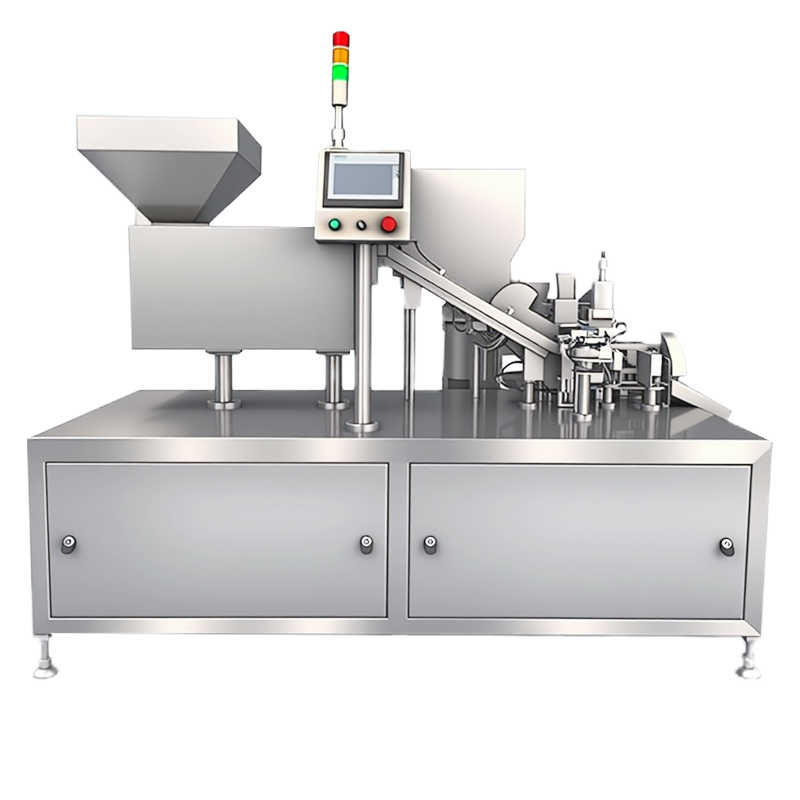

Automatic Effervescent Tablet Tube Filling Machine
The RUIYI Automatic Effervescent Tablet Tube Filling Machine is designed to arrange and load effervescent tablets into compatible plastic tubes. It integrates tablet feeding, orderly stacking, tube loading and automatic detection in a controlled packaging process. With a published production speed of 20–40 tubes per minute, the machine is suitable for pharmaceutical, healthcare and food manufacturing applications requiring consistent effervescent tablet tube packaging.
Technical Specifications
Technical parameters based on the RUIYI Machinery effervescent tablet packing machine product catalog.
| Machine Name | Automatic Effervescent Tablet Tube Filling Machine |
|---|---|
| Applicable Tablet Diameter | 18–26 mm |
| Applicable Tablet Thickness | 6 ± 0.3 mm (customizable) |
| Applicable Tube Diameter | 23–29 mm |
| Applicable Tube Height | 85–144 mm (change mold) |
| Tablets per Tube | 10–20 tablets |
| Production Speed | 20–40 tubes/minute |
| Compressed Air Pressure | 0.6 MPa |
| Air Consumption | 5.0 L/min |
| Hopper Capacity | 30 L |
| Power Supply | 220 V / 50 Hz |
| Power | 1.5 kW |
| Equipment Dimensions (L × W × H) | 2000 × 1700 × 1500 mm |
| Machine Weight | 640 kg |
| Tablet Contact Material | 316L stainless steel |
| Control System | Programmable controller with optical fiber and photoelectric detection |
Technical specifications are based on the supplied product catalog. Actual output depends on tablet dimensions, tablet feeding characteristics, tube specifications and machine settings. Different tube heights may require mold replacement. Confirm compatibility with product and tube samples before ordering.
Machine Features
Automatic tablet arrangement and tube loading functions for efficient effervescent tablet packaging.
Automatic Tablet Feeding
Feeds compatible effervescent tablets into the machine and prepares them for orderly arrangement before tube loading.
Orderly Tablet Stacking
Arranges effervescent tablets into the required sequence and quantity for loading into suitable packaging tubes.
PLC Automatic Control
The programmable control system coordinates tablet feeding, detection and tube loading for stable automatic operation.
Optical Detection and Monitoring
Optical fiber and photoelectric detection monitor the packaging process. The machine can stop automatically when tablets or tubes are missing.
316L Stainless Steel Contact Parts
Parts in contact with the effervescent tablets are made of 316L stainless steel, supporting hygienic handling and cleaning in pharmaceutical and food production environments.
Adjustable Tube Packaging
Supports compatible tubes with diameters of 23–29 mm and heights of 85–144 mm, with mold changes required for different tube formats.
Applications
Suitable for tube loading applications involving compatible effervescent tablet products.
Pharmaceutical Effervescent Tablets
Automatic tube loading for suitable pharmaceutical effervescent tablets where controlled tablet counting and arrangement are required.
Vitamin and Supplement Tablets
Packaging compatible vitamin and dietary supplement effervescent tablets into plastic tubes for retail distribution.
Healthcare Product Manufacturing
Tube packaging for suitable healthcare effervescent tablet products in pharmaceutical and health supplement manufacturing facilities.
Effervescent Beverage Tablets
Automatic tube loading for compatible effervescent drink tablets and related food products requiring orderly tablet stacking.
Why Choose RUIYI Effervescent Tablet Tube Filling Equipment?
Automatic Tube Loading
Automates tablet feeding, arrangement and loading to support continuous production of compatible effervescent tablet tubes.
Integrated Detection Functions
Optical fiber and photoelectric detection help monitor tablet and tube availability, with automatic stopping when required materials are missing.
Hygienic Contact Materials
316L stainless steel tablet-contact components support suitable material handling and cleaning procedures in pharmaceutical and food applications.
Factory Application Support
RUIYI Machinery can review tablet samples, tube dimensions, target tablet counts and production requirements to help confirm a suitable machine configuration.
Frequently Asked Questions
What is an automatic effervescent tablet tube filling machine?
An automatic effervescent tablet tube filling machine arranges and loads effervescent tablets into compatible tubes. The RUIYI machine integrates tablet feeding, stacking, tube loading and automatic detection in one controlled packaging process.
What is the production speed of this effervescent tablet tube filling machine?
The supplied RUIYI product catalog specifies a production speed of 20–40 tubes per minute. Actual output depends on tablet characteristics, tube specifications and operating conditions.
How many tablets can be loaded into each tube?
The published range is 10–20 tablets per tube. The appropriate quantity depends on tablet thickness, tube height and the selected packaging configuration.
What tablet and tube sizes are supported?
The catalog specifies tablet diameters of 18–26 mm, tablet thickness of 6 ± 0.3 mm with customization available, tube diameters of 23–29 mm and tube heights of 85–144 mm. Different tube heights may require mold changes.
Does the machine detect missing tablets or tubes?
Yes. The product description states that optical fiber and photoelectric detection are used for monitoring. The machine can automatically stop when tablets or tubes are missing.
What information is needed for a quotation?
Please provide the tablet diameter and thickness, number of tablets per tube, tube diameter and height, target production speed, power supply and destination country. Tablet and tube samples are recommended for compatibility testing.
Request an Effervescent Tablet Tube Filling Machine Quote
Tell us your tablet dimensions, tube dimensions, number of tablets per tube and required production speed. Our team can help evaluate a suitable automatic effervescent tablet tube filling solution.
