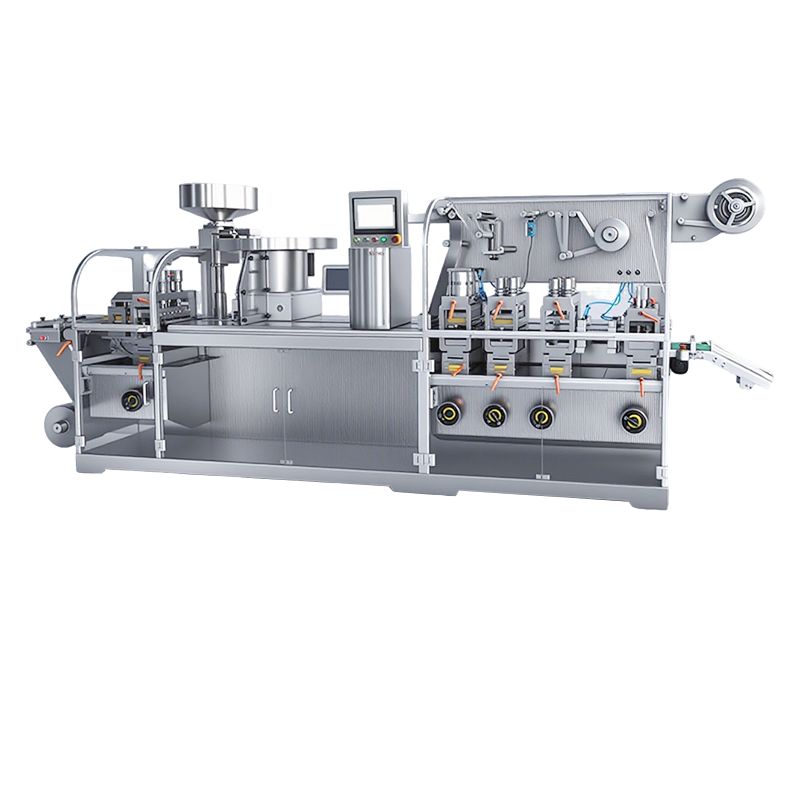

High-Speed Blister Packing Machine

The RUIYI High-Speed Blister Packing Machine is designed for automated pharmaceutical blister packaging of tablets and capsules. With a cutting frequency of 20–50 times/min and a maximum output of 180 blisters/min under the specified configuration, it supports efficient continuous production.

Maximum output: 180 blisters/min
Cutting frequency: 20–50 times/min
Suitable for tablets and capsules
Automated forming, sealing and cutting

Get a Quote

Technical Specifications

Specification	Details
Cutting Frequency	20–50 times/min
Maximum Production Capacity	180 blisters/min (80 × 57 mm, 4 blisters per cycle)
Maximum Forming Area	250 × 110 mm²
Traction Stroke	20–120 mm; maximum 160 mm
Standard Blister Section	80 × 57 mm
Capsules per Blister	Size 0/1: 10 capsules; size 1/2/3: 12 capsules; special shapes available by design
Main Motor	Y90L-6, 2.2 kW
Mold Heating Power	1.5 kW
Heat Sealing Power	1.5 kW
Mold Cooling	Self-contained water circulation; approx. 60 L/hour
Pump Capacity (Specified Pressure)	0.4–0.6 MPa
Working Table Length	1600 mm
Overall Dimensions	4500 × 850 × 1800 mm
Machine Weight	2600 kg

Machine Features

The RUIYI High-Speed Blister Packing Machine supports automated pharmaceutical blister packaging for tablets, capsules and compatible solid-dose products. Its integrated packaging process helps coordinate forming, product feeding, heat sealing and cutting. Packaging configurations should be selected according to product dimensions and production needs.

Automated Blister Packaging

20–50 Cuts/Min

Up to 180 Blisters/Min

Adjustable Traction Stroke

Integrated Heat Sealing

Cartoning Line Integration

Applications

Tablets Blister packaging for compatible pharmaceutical tablets in different shapes and sizes.

Capsules Suitable for specified capsule sizes with blister layouts selected according to product requirements.

Nutraceutical Products Packaging for compatible vitamins and solid dietary supplement products.

Healthcare Products Blister packaging applications for suitable solid healthcare products.

Advantages

Efficient Production Maximum capacity of 180 blisters/min with the specified 80 × 57 mm format and four blisters per cycle.

Flexible Blister Formats Standard traction stroke of 20–120 mm with a maximum of 160 mm.

Integrated Operations Combines forming, product feeding, heat sealing and cutting within the packaging process.

Downstream Integration Can be evaluated for connection with compatible cartoning and inspection equipment.

FAQ

What products can the RUIYI high-speed blister packing machine package?

The RUIYI High-Speed Blister Packing Machine is designed for compatible pharmaceutical tablets and capsules. It may also be used for suitable nutraceutical and healthcare products after confirming product dimensions, feeding requirements and blister layout.

What is the production capacity?

The machine has a cutting frequency of 20–50 times/min and a maximum production capacity of 180 blisters/min based on an 80 × 57 mm blister format with four blisters per cycle. Actual output depends on the selected packaging configuration.

What blister sizes can the machine handle?

The specified standard blister section is 80 × 57 mm, with a maximum forming area of 250 × 110 mm². The traction stroke is 20–120 mm as standard, with a maximum of 160 mm. Final format compatibility should be confirmed before production.

How many capsules can each blister contain?

According to the supplied equipment specifications, the listed layouts include 10 capsules for size 0/1 and 12 capsules for sizes 1, 2 and 3. Special blister layouts require configuration confirmation.

Can this machine connect to a cartoning line?

The high-speed blister packing machine may be integrated with compatible cartoning and inspection equipment. The transfer arrangement, blister dimensions and production speeds must be matched.

Can the blister packaging configuration be customized?

RUIYI Machinery can evaluate packaging configuration requirements based on product dimensions, blister layout, required output and compatible packaging materials. Available customization options depend on the selected machine.

Contact

Get a Suitable Blister Packaging Solution

Tell us your product type, product dimensions, blister size, packaging materials and required production capacity. We can help evaluate a suitable RUIYI blister packaging solution.
