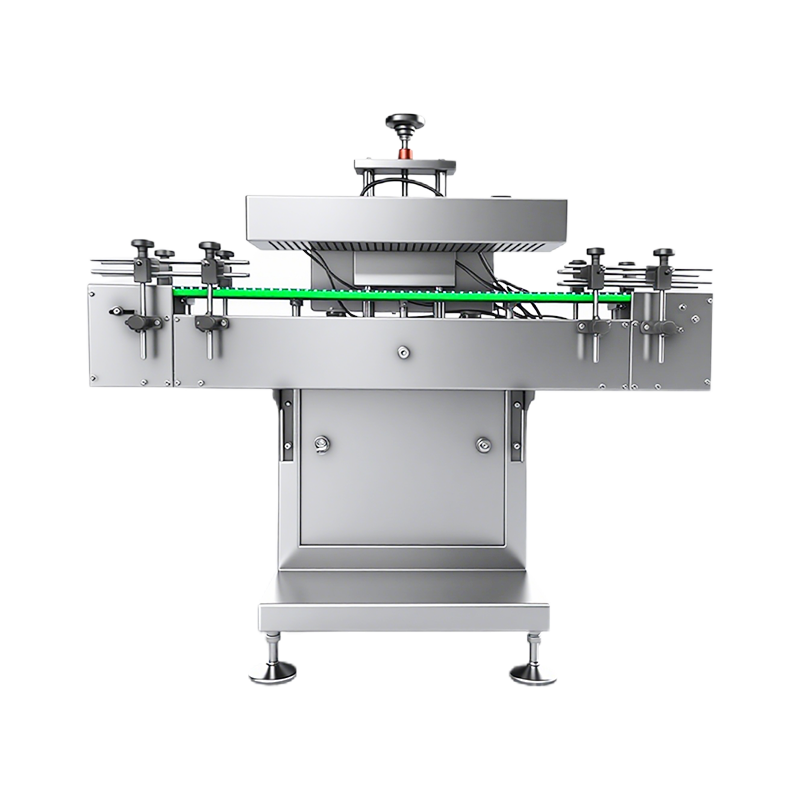

Air-Cooled Induction Sealing Machine
Air-cooled induction sealing machine designed for reliable aluminum foil sealing of compatible bottles. It provides stable, non-contact induction sealing for pharmaceutical, nutraceutical and supplement packaging lines.
✓ Reliable electromagnetic induction sealing
✓ Air-cooled system for continuous operation
✓ Suitable for different compatible bottle sizes
✓ Easy integration with automatic bottling lines
Technical Specifications
Specification
Details
Applicable Bottle Mouth Range
20–80 mm
Bottle Specifications
Diameter 20–100 mm, Height 40–180 mm
Sealing Accuracy
100%
Production Speed
20–150 bottles/min (depending on bottle mouth size)
Power Supply
220V / 50Hz / 0.6 kW
Machine Material
SUS304 Stainless Steel
Control System
PLC + Touch Screen
Machine Features
Designed for stable and continuous aluminum foil sealing, this air-cooled induction sealing machine uses electromagnetic induction technology to create a reliable seal on compatible bottle openings. The air-cooled system supports efficient operation without a separate water-cooling system. It can operate independently or integrate with counting, capping and labeling equipment in a complete automatic bottling line.
Electromagnetic Induction Sealing
Air-Cooled System
Reliable Sealing
Bottle Compatibility
Continuous Operation
Easy Line Integration
Applications
Tablet Bottles
Suitable for aluminum foil sealing of compatible bottles used for tablet packaging.
Capsule Bottles
Suitable for capsule bottle sealing in pharmaceutical and nutraceutical packaging lines.
Supplement Bottles
Suitable for vitamins and dietary supplement bottles requiring aluminum foil sealing.
Pharmaceutical Bottles
Suitable for compatible pharmaceutical bottles requiring reliable induction sealing.
Advantages
Reliable Sealing
Provides consistent aluminum foil sealing for compatible bottle and liner specifications.
Air-Cooled Design
Uses an air-cooled system for convenient continuous production without external water cooling.
Easy Operation
Designed for convenient operation and adjustment during daily bottle packaging production.
Flexible Integration
Can operate independently or as part of a complete automatic bottling line.
FAQ
What is an Air-Cooled Induction Sealing Machine used for?
An Air-Cooled Induction Sealing Machine uses electromagnetic induction to seal aluminum foil liners onto compatible bottle openings. It is commonly used in pharmaceutical, nutraceutical and supplement bottle packaging.
How does an Air-Cooled Induction Sealing Machine work?
The machine generates an electromagnetic field that heats the aluminum foil liner without direct contact. The sealing layer bonds to the bottle opening to create a secure seal.
What is the difference between air-cooled and water-cooled induction sealing machines?
An air-cooled induction sealing machine uses air to dissipate heat and does not require a separate water-cooling system. A water-cooled induction sealer uses circulating water for cooling and may be selected according to production speed, operating conditions and sealing requirements.
Can an Induction Sealing Machine be integrated into a complete bottling line?
Yes. It can be integrated with a bottle unscrambler, electronic counting machine, desiccant pouch inserter, capping machine and labeling machine to form a complete automatic pharmaceutical or nutraceutical bottling line.
Is it suitable for a complete automatic bottling line?
Yes. It can be integrated with a bottle unscrambler, desiccant inserter, capping machine, induction sealing machine, labeling machine and other equipment to form a complete automatic bottling line.
Can the machine be customized?
Yes. Configuration can be adjusted according to your product, bottle size, required output and production line requirements.
