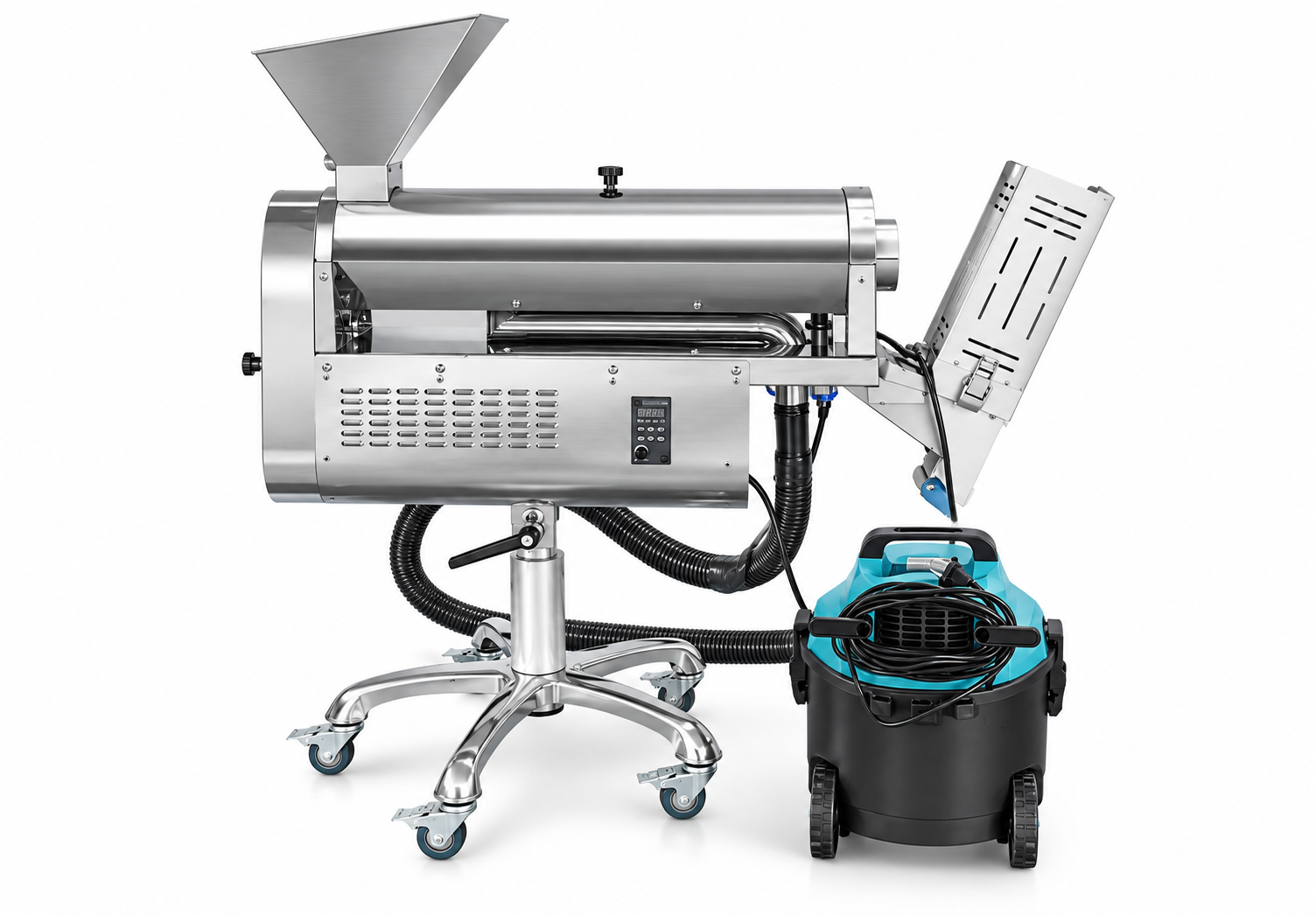

Hard Capsule Pill Polishing Machine
The RUIYI Hard Capsule Pill Polishing Machine is designed for capsule surface polishing and the removal of loose powder residue after hard capsule filling. It is suitable for pharmaceutical and health supplement capsule production processes. Two equipment configurations are listed, with rated processing capacities of 200,000 and 300,000 capsules per hour. The machine supports capsule sizes from 00# to 5#.
Technical Specifications
Supplied technical parameters for two RUIYI hard capsule polishing machine configurations.
| Machine Name | Hard Capsule Pill Polishing Machine |
|---|---|
| Configuration | Configuration A / Configuration B |
| Processing Capacity |
Configuration A: 200,000 capsules/hour Configuration B: 300,000 capsules/hour |
| Applicable Capsule Size | 00#–5# (both configurations) |
| Power Supply | Custom made according to customer's request |
| Rated Power | 0.18 kW (both configurations) |
| Compressed Air |
Configuration A: 0.25 m³/min, 0.3 MPa Configuration B: 15 m³/min, 0.3 MPa |
| Negative Pressure |
Configuration A: 2.7 m³/min, -0.014 MPa Configuration B: 100 m³/h, -0.014 MPa |
| Machine Weight |
Configuration A: 42 kg Configuration B: 40 kg |
| Overall Dimensions |
Configuration A: 800 × 550 × 800 mm Configuration B: 950 × 600 × 1000 mm |
Parameters are reproduced from the supplied equipment table. Confirm the compressed-air and negative-pressure requirements, especially the Configuration B air-flow value, before purchase. Actual capacity depends on capsule size, product condition and operating conditions.
Machine Features
A capsule finishing solution designed for surface polishing and post-filling capsule handling.
Capsule Surface Polishing
Designed to polish the outer surfaces of hard capsules and assist with removing loose powder residue.
Two Capacity Options
The supplied equipment table lists processing capacities of 200,000 and 300,000 capsules per hour.
Multiple Capsule Sizes
Suitable for capsule sizes 00# through 5#, covering a range of common hard capsule formats.
Low Rated Motor Power
Both listed configurations have a rated machine power of 0.18 kW, excluding separately specified utilities.
Negative-Pressure Operation
The supplied specifications include negative-pressure requirements for the equipment configurations.
Flexible Electrical Requirements
The power supply can be specified according to the customer's electrical requirements.
Applications
The RUIYI hard capsule polishing machine is intended for capsule finishing after filling and before subsequent handling or packaging.
Pharmaceutical Capsules
Surface polishing of filled hard capsules in pharmaceutical production workflows.
Health Supplement Capsules
Post-filling capsule finishing for suitable health supplement capsule products.
Powder-Filled Capsules
Helps remove loose surface powder after compatible capsule filling processes.
Capsule Production Lines
Can be considered as a post-filling processing stage before capsule inspection or packaging, subject to line compatibility.
Why Choose RUIYI Capsule Polishing Equipment?
Improved Capsule Appearance
Capsule polishing helps reduce loose surface residue and improve capsule presentation.
Capacity Selection
Two listed processing capacities allow buyers to compare equipment against production needs.
Capsule Size Compatibility
Supports 00#–5# capsule sizes, subject to product and equipment compatibility.
Manufacturer Support
RUIYI Machinery provides equipment consultation, factory inspection arrangements, machine testing and configuration discussions based on your project.
Frequently Asked Questions
What is a hard capsule polishing machine used for?
A hard capsule polishing machine is used after capsule filling to polish capsule surfaces and help remove loose powder residue. The RUIYI Hard Capsule Pill Polishing Machine is intended for compatible hard capsule production and finishing applications.
What is the capacity of the RUIYI capsule polishing machine?
The supplied RUIYI equipment table lists two configurations with processing capacities of 200,000 and 300,000 capsules per hour. Actual throughput depends on capsule size, product condition and operating conditions.
Which capsule sizes can this polishing machine process?
Both configurations are listed as suitable for hard capsule sizes 00# to 5#. Customers should confirm their capsule dimensions and material before ordering.
What is the difference between the two capsule polishing configurations?
Configuration A is rated at 200,000 capsules per hour, weighs 42 kg and measures 800 × 550 × 800 mm. Configuration B is rated at 300,000 capsules per hour, weighs 40 kg and measures 950 × 600 × 1000 mm. The configurations also have different stated compressed-air and negative-pressure requirements.
Can this machine be used after an automatic capsule filling machine?
A capsule polishing machine can be considered for use after a hard capsule filling process to remove loose powder from capsule surfaces. Integration with an existing capsule filling machine should be confirmed based on capsule dimensions, production capacity and transfer arrangements.
What information is needed for a capsule polishing machine quotation?
Please provide your capsule size, target hourly capacity, existing capsule filling equipment, destination country and available compressed-air and vacuum conditions. RUIYI Machinery can review the application and discuss the appropriate configuration.
Request a Capsule Polishing Machine Quote
Tell us your capsule size, production capacity and existing capsule filling equipment. Our team can help you discuss a suitable capsule polishing solution.
