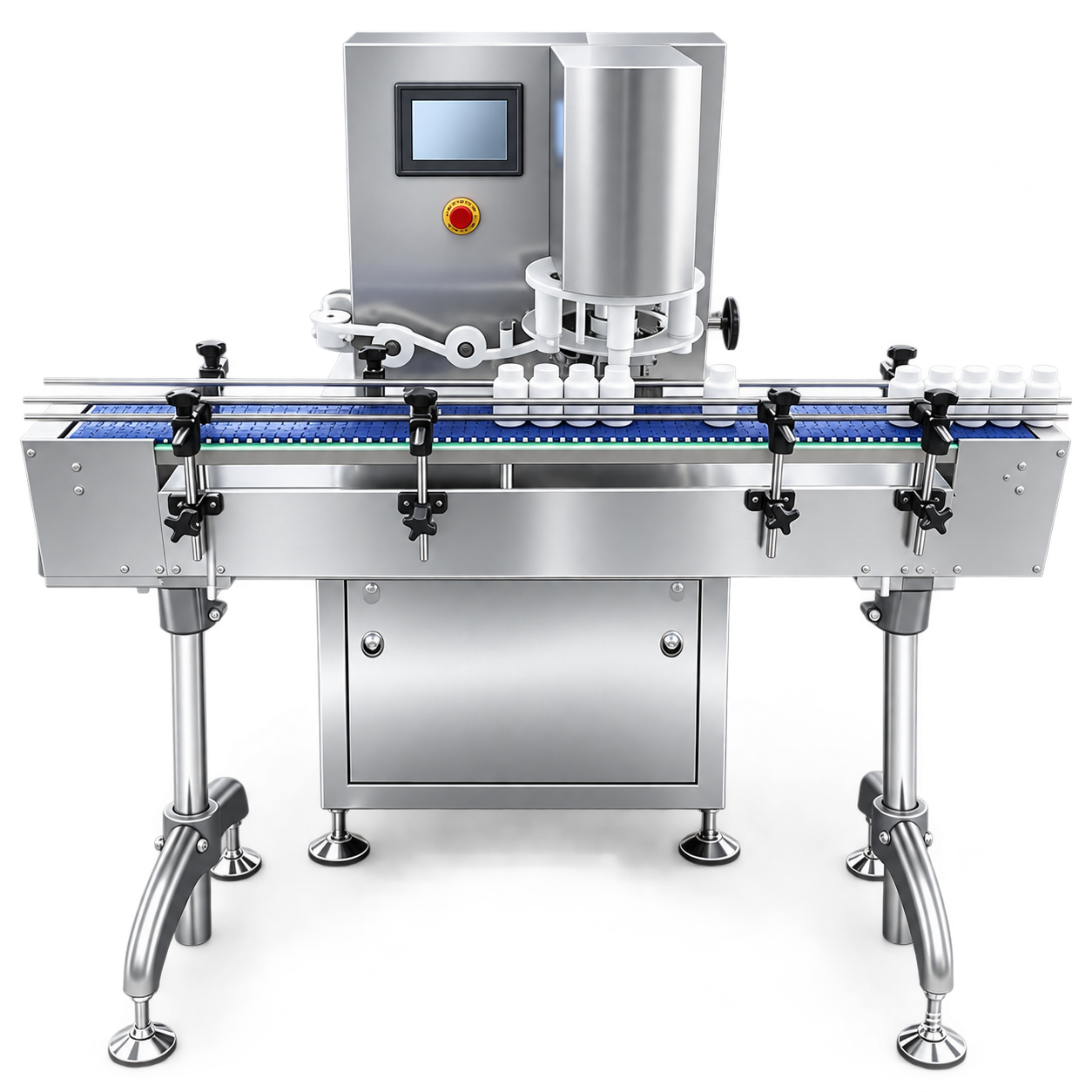

Automatic Cotton Inserting Machine
The RUIYI Automatic Cotton Inserting Machine is designed to insert medical cotton into bottles on an automated packaging line. It coordinates bottle positioning, cotton feeding, cutting and insertion to support continuous bottle packaging operations.
Technical Specifications
Official equipment parameters for the RUIYI automatic cotton inserting machine.
| Machine Name | Automatic Cotton Inserting Machine |
|---|---|
| Applicable Bottle Types | Round, flat-round, square and flat-square bottles |
| Applicable Bottle Diameter | 20–100 mm |
| Cotton Type | Round strip cotton, approximately 25 mm in diameter |
| Production Capacity | 10–60 bottles/min |
| Power Supply | 220V / 50Hz |
| Power | 0.5 kW |
| Air Supply | 0.6 MPa |
| Equipment Dimensions | 1360 × 1080 × 1410 mm |
| Machine Weight | 310 kg |
Actual line performance depends on bottle specifications, cotton material and the configuration of connected equipment.
Machine Features
Designed for automatic cotton insertion during bottle packaging operations.
Automatic Bottle Positioning
Bottles are stopped at the cotton insertion station and positioned for the insertion process.
Cotton Feeding Mechanism
The feeding mechanism draws cotton material from the cotton supply for subsequent cutting and insertion.
Automatic Cotton Cutting
The cutting mechanism separates the cotton material before it is inserted into the bottle.
Automatic Cotton Insertion
The machine inserts the prepared cotton into the bottle after the bottle reaches its designated position.
Conveyor Coordination
The conveyor transfers bottles with inserted cotton to downstream packaging equipment.
Continuous Production
Automatic positioning, feeding, cutting and insertion reduce the need for manual cotton placement.
Applications
The automatic cotton inserting machine can be used in bottle packaging operations that require cotton insertion before subsequent processing.
Pharmaceutical Bottle Packaging
Cotton insertion for compatible pharmaceutical bottles as part of a bottle packaging process.
Tablet and Capsule Bottling Lines
Integration with compatible tablet and capsule counting and bottling equipment where cotton insertion is required.
Round Bottle Packaging
Cotton insertion for suitable round and flat-round bottles within the specified size range.
Square Bottle Packaging
Cotton insertion for suitable square and flat-square bottle formats.
Why Choose RUIYI Cotton Inserting Equipment?
Automated Packaging Process
Combines bottle positioning, cotton feeding, cutting and insertion into an automatic process.
Flexible Bottle Compatibility
Supports several bottle shapes with an applicable bottle diameter range of 20–100 mm.
Production Line Integration
Can be incorporated into compatible bottle packaging lines with upstream and downstream equipment.
Manufacturer Support
RUIYI Machinery provides equipment consultation, factory inspection arrangements, machine testing and configuration discussions based on your project.
Frequently Asked Questions
What is an automatic cotton inserting machine?
An automatic cotton inserting machine is bottle packaging equipment that feeds, cuts and inserts cotton into bottles. The RUIYI machine automatically positions bottles at the insertion station and transfers processed bottles to downstream equipment.
What is the production speed of the RUIYI cotton inserting machine?
The specified production capacity is 10–60 bottles per minute. Actual operating speed depends on the bottle format, cotton material and connected packaging line conditions.
Which bottle shapes and sizes are supported?
The machine is designed for round, flat-round, square and flat-square bottles with an applicable bottle diameter of 20–100 mm. Customers should provide bottle samples or drawings to confirm suitability before ordering.
What type of cotton does the machine use?
According to the equipment specifications, the machine uses round strip cotton with a diameter of approximately 25 mm. Material compatibility should be confirmed using the customer's actual cotton samples.
Can this machine be connected to a tablet or capsule bottling line?
Yes. The RUIYI automatic cotton inserting machine is designed for conveyor-based bottle handling and can be considered for integration with compatible tablet or capsule bottling equipment. The final layout and interface requirements should be confirmed for each project.
What information is needed to request a quotation?
Please provide the bottle shape and dimensions, cotton material specifications, required production capacity, available power and air supply, and whether the machine will operate independently or as part of an existing packaging line. RUIYI Machinery can then discuss a suitable equipment configuration.
Request a Cotton Inserting Machine Quote
Tell us your bottle dimensions, cotton specifications and required production speed. Our team can help you discuss a suitable packaging solution.
